Your location： Home > Marine valve > Butterfly valve > Manual butterfly valve

product name：Marine PTFE Butterfly Valve GB / T3036-94

Product number：
Product caliber：
Product pressure：
product material：

Marine PTFE butterfly valve GB / T3036-94 features small and light weight, easy to disassemble and maintain, and can be installed at any position. The structure is simple and compact, and the 90 ° rotation is quickly opened and closed. The operating torque is small, labor saving and light. The flow characteristics tend to be straight, and the adjustment performance is good. Up to tens of thousands of opening and closing tests, life

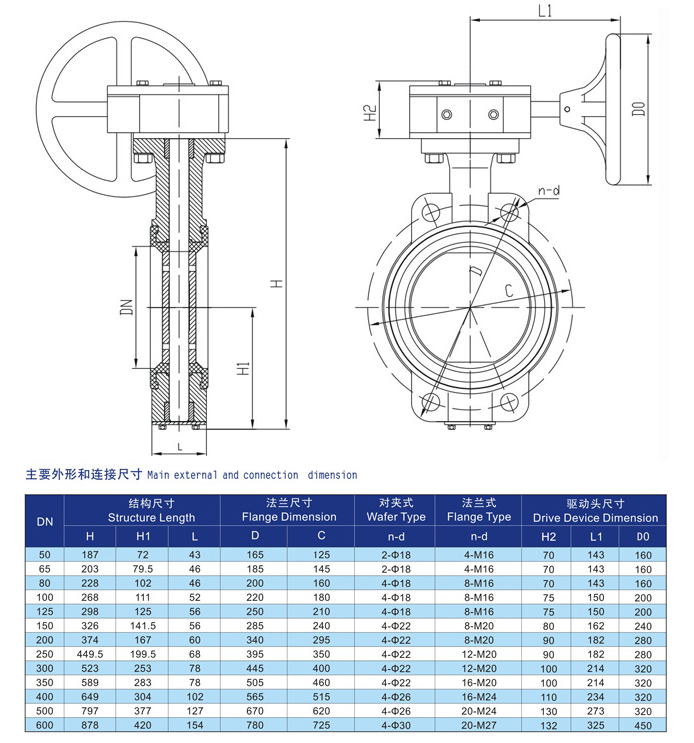

Marine PTFE butterfly valve GB / T3036-94

Features

Small and light, easy to disassemble and maintain, and can be installed at any position.
The structure is simple and compact, and the 90 ° rotation is quickly opened and closed.
The operating torque is small, labor saving and light.
The flow characteristics tend to be straight, and the adjustment performance is good.
The number of opening and closing tests is as many as tens of thousands of times, and the service life is long.
A complete seal is achieved and the gas test leak is zero.
Choose different parts and materials, applicable to multiple media.

Connection method; flange; wafer type; lug type.

Structure type; center line type, double eccentric type

Product model: A type, B type, AS type, BS type, CS type, SX type, ES type, QS type, DS type FSB type, FA type, FB type, FD type, FQ type

Product caliber: DN40-1200

Product pressure: 5K 10K 16K 0.6 1.0 1.6Mpa 125LB 150LB 300LB.

Body material: cast iron, cast steel, stainless steel, bronze.

Valve plate material; stainless steel, ductile iron, aluminum bronze, cast steel.

Seat material; PTFE FKM

Product introduction: Manufacturing standard: China GB, Ministry of Machinery JB, chemical standard HG, American standard API, ANSI, German standard DIN, Japanese JIS, JPI, British standard BS production Body material: copper, cast iron, carbon steel, WCB, WC6, WC9, 20 #, 25 #, forged steel, A105, F11, F22, stainless steel, 304, 304L, 316, 316L, chrome molybdenum steel, low temperature steel, titanium Alloy steel, etc. Working pressure 1.0Mpa-50.0Mpa. Working temperature: -196 ℃ -650 ℃. Connection method: internal thread, external thread, flange, welding, butt welding, socket welding, clamp, clamp. Drive mode: manual, pneumatic, hydraulic, electric.

Pushou Valve has the world's top production equipment and technical engineers, and has the ability to produce high-quality marine valves according to national standards and various industry standards.
